Assertion (A): The surface area of the cuboid formed by joining two cubes of sides $4$ cm each, end to end, is $160$ cm$^2$. Reason (R) : Surface area of a cuboid of dimensions $l \times b \times h$ is $(lb + bh + hl)$
Show SolutionHide Solution↓
Ans. (c) Assertion (A) is true but Reason (R) is false
Questions number $19$ and $20$ are Assertion and Reason based questions. Two statements are given, one labelled as Assertion (A) and the other is labelled as Reason (R). Select the correct answer to these questions from the codes (A), (B), (C) and (D) as given below. (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A). (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A). (C) Assertion (A) is true, but Reason (R) is false. (D) Assertion (A) is false, but Reason (R) is true. Assertion (A): Two cubes each with $12$ cm edge are joined end to end. The surface area of the resulting cuboid = $2 \times$ (surface area of one cube). Reason (R) : The surface area of a cuboid = $2 (lb + bh + hl)$, where $l$, $b$, $h$ respectively are its length, breadth and height.
Show SolutionHide Solution↓
Sol. (D) Assertion (A) is false, but Reason (R) is true.
Assertion (A): Two cubes each of edge length $10$ cm are joined together. The total surface area of newly formed cuboid is $1200$ cm$^2$. Reason (R): Area of each surface of a cube of side $10$ cm is $100$ cm$^2$.
Show SolutionHide Solution↓
(D) Assertion (A) is not true but Reason (R) is true.
Directions : In Question $19$ and $20$, Assertion (A) and Reason (R) are given. Select the correct option from the following : (A) Both Assertion (A) and Reason (R) are true. Reason (R) is the correct explanation of Assertion (A). (B) Both Assertion (A) and Reason (R) are true. Reason (R) does not give correct explanation of (A). (C) Assertion (A) is true but Reason (R) is not true. (D) Assertion (A) is not true but Reason (R) is true. Assertion (A): Two cubes each of edge length $10$ cm are joined together. The total surface area of newly formed cuboid is $1200$ cm$^2$. Reason (R): Area of each surface of a cube of side $10$ cm is $100$ cm$^2$.
Show SolutionHide Solution↓
(D) Assertion (A) is not true but Reason (R) is true.
Questions number $19$ and $20$ are Assertion and Reason based questions. Two statements are given, one labelled as Assertion (A) and the other is labelled as Reason (R). Select the correct answer to these questions from the codes (A), (B), (C) and (D) as given below. (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A). (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A). (C) Assertion (A) is true, but Reason (R) is false. (D) Assertion (A) is false, but Reason (R) is true. Assertion (A) : The area of canvas cloth required to just cover a heap of rice in the form of a cone of diameter $14$ m and height $24$ m is $175\pi$ sq.m. Reason (R) : The curved surface area of a cone of radius $r$ and slant height $l$ is $\pi rl$.
Show SolutionHide Solution↓
(A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A).
Assertion (A): The curved surface area of a right circular cone of radius $3.5$ cm and slant height $4$ cm is $44$ sq cm. Reason (R): The curved surface area of a right circular cone of radius $r$ and slant height $l$ is $\pi rl$.
Show SolutionHide Solution↓
(A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A).
Assertion (A): If we join two hemispheres of same radius along their bases, then we get a sphere. Reason (R): Total Surface Area of a sphere of radius $r$ is $3\pi r^2$.
(a)Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A).
(b)Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of the Assertion (A).
(c)Assertion (A) is true, but Reason (R) is false.
(d)Assertion (A) is false, but Reason (R) is true.
Show SolutionHide Solution↓
(C) Assertion (A) is true, but Reason (R) is false.
Questions number $19$ and $20$ are Assertion and Reason based questions. Two statements are given, one labelled as Assertion (A) and the other is labelled as Reason (R). Select the correct answer to these questions from the codes (A), (B), (C) and (D) as given below. (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A). (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of the Assertion (A). (C) Assertion (A) is true, but Reason (R) is false. (D) Assertion (A) is false, but Reason (R) is true. Assertion (A): If we join two hemispheres of same radius along their bases, then we get a sphere. Reason (R): Total Surface Area of a sphere of radius $r$ is $3\pi r^2$.
Show SolutionHide Solution↓
(C) Assertion (A) is true, but Reason (R) is false.
Assertion (A): If the total surface area of a solid hemisphere is $462$ cm$^2$, then its radius is $7$ cm. Reason (R): The total surface area of a solid hemisphere of radius $r$ is $3\pi r^2$.
(a)Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of Assertion (A).
(b)Both Assertion (A) and Reason (R) are true, but Reason (R) is not the correct explanation of Assertion (A).
(c)Assertion (A) is true, but Reason (R) is false.
(d)Assertion (A) is false, but Reason (R) is true.
Show SolutionHide Solution↓
(A) Both Assertion(A) and Reason(R) are true and Reason(R) is the correct explanation of Assertion(A).
A wooden toy is made by scooping out a hemisphere of same radius as of cylinder, from each end of a wooden solid cylinder. If the height of the cylinder is $20$ cm and its base is of radius $7$ cm, find the total surface area of the toy.
The inner and outer radii of a hollow cylinder surmounted on a hollow hemisphere of same radii are $3$ cm and $4$ cm respectively. If height of the cylinder is $14$ cm, then find its total surface area (inner and outer).
Show SolutionHide Solution↓
Total surface Area = Inner CSA + Outer CSA + Area of ring $= [2\pi \times 3 \times (3+14)] + [2\pi \times 4 \times (4+14)] + [\pi \times (16-9)]$ $= \frac{2244}{7} + \frac{3168}{7} + 22$ $= \frac{5566}{7} \text{ cm}^2 \text{ or } 795.14 \text{ cm}^2 \text{ approx.}$
Case Study - 3 For the Kumbh Mela, Uttar Pradesh Government prescribed the following for the contractors to pitch the tents. Each tent must be of cylindrical base of radius $21$ m and height $5$ m, surmounted by a conical part of height $20$ m. The cylindrical part must have a white coloured thick fabric costing ₹60 per square meter, while the conical part must have PVC coated blue fabric costing ₹70 per square meter. Based on the above information, answer the following questions: (a) How much blue PVC (in sq.m) is required and what will be its total cost? (b) How much white fabric (in sq.m) is required and what will be its total cost?
Show SolutionHide Solution↓
Given: Radius of cylindrical base $r = 21$ m. Height of cylindrical part $h_c = 5$ m. Height of conical part $h_k = 20$ m. (a) For the conical part (blue PVC): Slant height $l = \sqrt{r^2 + h_k^2} = \sqrt{21^2 + 20^2} = \sqrt{441 + 400} = \sqrt{841} = 29$ m. Curved Surface Area (CSA) of conical part $= \pi r l = \frac{22}{7} \times 21 \times 29 = 22 \times 3 \times 29 = 66 \times 29 = 1914$ m$^2$. Cost of blue PVC $= 1914 \times \text{Rs}70 = \text{Rs}133980$. (b) For the cylindrical part (white fabric): Curved Surface Area (CSA) of cylindrical part $= 2\pi r h_c = 2 \times \frac{22}{7} \times 21 \times 5 = 2 \times 22 \times 3 \times 5 = 660$ m$^2$. Cost of white fabric $= 660 \times \text{Rs}60 = \text{Rs}39600$.
A tent is in the shape of a right circular cylinder up to a height of $3$ m and then a right circular cone, with a maximum height of $13.5$ m above the ground. Calculate the cost of painting the inner side of the tent at the rate of ₹2 per square metre, if the radius of the base is $14$ m.
Show SolutionHide Solution↓
Height of conical part $= 13.5 - 3 = 10.5$ m Slant height $= \sqrt{(14)^2 + (10.5)^2} = 17.5$ m SA of tent = CSA of conical part + CSA of cylindrical part $= (\frac{22}{7} \times 14 \times 17.5) + (2 \times \frac{22}{7} \times 14 \times 3)$ $= 1034$ m$^2$ Cost of painting @ ₹2 per m$^2 = 1034 \times 2 = 2068$
From a solid cylinder of height $20$ cm and diameter $12$ cm, a conical cavity of height $8$ cm and radius $6$ cm is hallowed out. Find the total surface area of the remaining solid.
Show SolutionHide Solution↓
Height of cylinder $h = 20$ cm radius of cylinder $= 6$ cm $=$ Radius of cone Height of cone $= 8$ cm Slant height $l = \sqrt{8^2 + 6^2} = \sqrt{64 + 36} = 10$ cm Surface area of remaining solid $= CSA \text{ of cylinder} + CSA \text{ of cone} + \text{Area of base of cylinder}$ $= 2\pi rh + \pi rl + \pi r^2 = \pi r[2h + l + r]$ $= \frac{22}{7} \times 6[2 \times 20 + 10 + 6] = \frac{22}{7} \times 6 \times 56$ $= 1056 \text{ cm}^2$
A wooden article was made by scooping out a hemisphere from each end of a solid cylinder, as shown in the figure. If the height of the cylinder is $10$ cm and its base is of radius $3.5$ cm, find the total surface area of the article.
Show SolutionHide Solution↓
Height of cylinder = $10$ cm Radius of cylinder = radius of hemisphere = $3.5 = \frac{7}{2}$ cm Total surface area of the article = CSA of cylinder + CSA of $2$ hemispheres = $$\begin{aligned}& 2\pi rh + 2 \times 2\pi r^2 \\ & = 2\pi r(h + 2r) \\ & = 2 \times \frac{22}{7} \times \frac{7}{2} (10 + 2 \times \frac{7}{2}) \\ & = 22 \times 17 = 374\end{aligned}$$ cm$^2$
A solid is in the form of a right circular cylinder with hemispherical ends. The total height of the solid is $58$ cm and the diameter of the cylinder is $28$ cm. Find the total surface area of the solid.
Show SolutionHide Solution↓
Sol. Height of cylindrical part = $58 - 14 - 14 = 30$ cm Radius of cylindrical as well as hemispherical parts = $14$ cm TSA of the solid = $4 \times \frac{22}{7} \times (14)^2 + 2 \times \frac{22}{7} \times 14 \times 30$ = $5104 \text{ cm}^2$ Therefore, total surface area of the solid is $5104 \text{ cm}^2$.
A wooden article was made by scooping out a hemisphere from each end of a solid cylinder, as shown in the figure. If the height of the cylinder is $5.8 \text{ cm}$ and its base is of radius $2.1 \text{ cm}$, find the total surface area of the article.
A tent is in the shape of a cylinder, surmounted by a conical top. If the height and diameter of the cylindrical part are $3.5$ m and $6$ m, and slant height of the top is $4.2$ m, find the area of canvas used for making the tent. Also, find the cost of canvas of the tent at the rate of ₹500 per m$^2$.
The interior of a building is in the form of a cylinder of base radius $12$ m and height $3.5$ m surmounted by a cone of equal base and slant height $14$ m. Find the internal curved surface area of the building.
Show SolutionHide Solution↓
Internal CSA of the building = $$\begin{aligned}& 2 \times \frac{22}{7} \times 12 \times 3.5 + \frac{22}{7} \times 12 \times 14 \\ & = 792\end{aligned}$$ m$^2$
A toy is in the form of a cone of radius $3.5$ cm, mounted on a hemisphere of same radius. The total height of the toy is $15.5$ cm. Find the total surface area of the toy.
Show SolutionHide Solution↓
Height of conical part = $15.5 – 3.5 = 12$ cm Slant height = $\sqrt{(3.5)^2 + (12)^2} = 12.5$ cm Total surface area of toy = CSA of conical part + CSA of hemispherical part $= \frac{22}{7} \times 3.5 \times 12.5 + 2 \times \frac{22}{7} \times (3.5)^2$ $= 214.5$ cm$^2$
A wooden cubical die is formed by forming hemispherical depressions on each face of the cube such that face $1$ has one depression, face $2$ has two depressions and so on. The sum of number of hemispherical depressions on opposite faces is always $7$. If the edge of the cubical die measures $5$ cm and each hemispherical depression is of diameter $1.4$ cm, find the total surface area of the die so formed.
Show SolutionHide Solution↓
Number of hemispherical depressions = $21$ Total surface area of the die formed = TSA of cube + CSA of $21$ hemispheres – Base area of $21$ hemispherical depressions $= 6 \times 5^2 + 21 \times 2 \times \frac{22}{7} \times (0.7)^2 - 21 \times \frac{22}{7} \times (0.7)^2$ $= 182.34$ cm$^2$

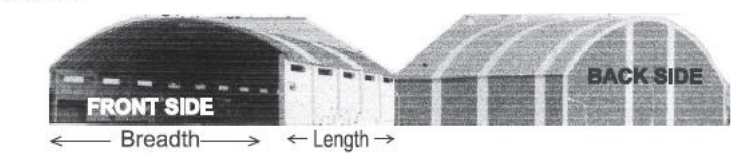

In order to provide shelter to flood victims, a shed was constructed using tin sheets which is in the form of cuboid surmounted by a half cylinder as shown below : The length, breadth and height of cuboidal portion are $10$ m, $7$ m and $3$ m respectively. The diameter of the cylindrical portion is $7$ m. Find the cost of tin sheets required to make the shed at the rate of ₹ $70$ per square metre, given that the shed is open from the front side and closed from the back side.
Show SolutionHide Solution↓
Area of the sheet required for the shed $= (\text{lateral surface area of the cuboid} - \text{front area}) + \frac{1}{2} CSA \text{ of cylinder} + \text{area of semicircle}$ $= [2 \times (10 + 7) \times 3 - 7 \times 3] + \frac{1}{2} \times 2 \times \frac{22}{7} \times \frac{7}{2} \times 10 + \frac{1}{2} \times \frac{22}{7} \times (\frac{7}{2})^2$ $= \frac{841}{4} m^2$ Cost of sheet $= \frac{841}{4} \times 70 = \text{\text{Rs} } 14717.50$

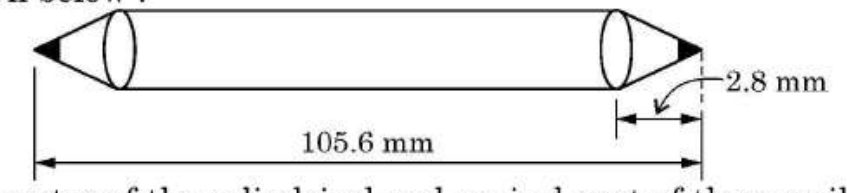

On the day of her examination, Riya sharpened her pencil from both ends as shown below: The diameter of the cylindrical and conical part of the pencil is $4.2$ mm. If the height of each conical part is $2.8$ mm and length of entire pencil is $105.6$ mm, find the total surface area of the pencil.
Show SolutionHide Solution↓
$d = 4.2$ mm, $r = 2.1$ mm. Height of cylindrical part $(h) = 100$ mm. Height of conical part = $2.8$ mm. Slant height $(l) = \sqrt{(2.8)^2 + (2.1)^2} = 3.5$ mm. Curved Surface Area of Cylinder = $2 \times \frac{22}{7} \times 2.1 \times 100 = 1320$ mm$^2$. Curved Surface Area of Cone = $\frac{22}{7} \times 2.1 \times 3.5 = 23.1$ mm$^2$. Total Surface Area of pencil = Curved Surface Area of cylinder + Curved Surface Area of two cones = $1366.2$ mm$^2$.
A tent is of the shape of a right circular cylinder up to a height of $3$ metres surmounted by a right circular cone of same radius such that the total height of the tent is $13.5$ metres above the ground. Calculate the cost of painting the inner side of the tent at the rate of ₹ $2$ per square metre, if the radius of the base is $14$ metres.
Questions number $19$ and $20$ are Assertion and Reason based questions. Two statements are given, one labelled as Assertion (A) and the other is labelled as Reason (R). Select the correct answer to these questions from the codes (A), (B), (C) and (D) as given below. (A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A). (B) Both Assertion (A) and Reason (R) are true, but Reason (R) is textbf{not} the correct explanation of the Assertion (A). (C) Assertion (A) is true, but Reason (R) is false. (D) Assertion (A) is false, but Reason (R) is true. Assertion (A): In the given figure, a toy is in the form of a cylinder surmounted by a hemisphere of the same radius. If the radius of the cylinder is $3$ cm and its height is $7$ cm, then the volume of toy is $81 \pi \text{ cm}^3$. Reason (R): Volume of the given solid is the sum of the volume of the cylinder and the volume of the hemisphere.
Show SolutionHide Solution↓
(A) Both Assertion (A) and Reason (R) are true and Reason (R) is the correct explanation of the Assertion (A).
A room is in the form of cylinder surmounted by a hemi-spherical dome. The base radius of hemisphere is one-half the height of cylindrical part. Find total height of the room if it contains $\frac{1408}{21}$ m$^3$ of air. Take $\pi = \frac{22}{7}$
Show SolutionHide Solution↓
Let $h$ be height of cylindrical part and $r$ be radius of hemisphere Volume of room = $2\pi r^3 + \frac{2}{3} \pi r^3 = \frac{1408}{21}$ $\Rightarrow r=2$ Therefore, $h=4$ Height of the room is = $6$m
An empty cone is of radius 3 cm and height 12 cm. Ice-cream is filled in it so that lower part of the cone which is $(\frac{1}{6})^{\text{th}}$ of the volume of the cone is unfilled but hemisphere is formed on the top. Find volume of the ice-cream. (Take $\pi = 3.14$)
Show SolutionHide Solution↓
Volume of the cone = $\frac{1}{3}\times\pi\times9\times12=36\pi\text{cm}^3$ Volume of ice-cream in the cone = $\frac{5}{6} \times 36 \times \pi = 30\pi\text{cm}^3$ Volume of ice-cream on top = $\frac{2}{3} \times 27 \times \pi = 18\pi\text{cm}^3$ Total volume of the ice-cream = $(30\pi +18\pi) = 48\pi\text{cm}^3$ $=48\times3.14=150.72\text{cm}^3$
An empty cone is of radius $3$ cm and height $12$ cm. Ice-cream is filled in it so that lower part of the cone which is $\left(\frac{1}{6}\right)^{\text{th}}$ of the volume of the cone is unfilled but hemisphere is formed on the top. Find volume of the ice-cream. (Take $\pi = 3.14$)
Show SolutionHide Solution↓
Volume of the cone = $$\begin{aligned}& \frac{1}{3}\times\pi\times9\times12=36\pi \text{cm}^3 \\ & \text{Volume of ice-cream in the cone} = \frac{5}{6} \times 36 \times \pi = 30\pi \text{cm}^3 \\ & \text{Volume of ice-cream on top} = \frac{2}{3} \times 27 \times \pi = 18\pi \text{cm}^3 \\ & \text{Total volume of the ice-cream} = (30\pi +18\pi) = 48\pi \text{cm}^3 \\ & =48\times3.14=150.72\text{cm}^3\end{aligned}$$
The difference between the outer and inner radii of a hollow right circular cylinder of length $14$ cm is $1$ cm. If the volume of the metal used in making the cylinder is $176$ cm$^3$, find the outer and inner radii of the cylinder.
Show SolutionHide Solution↓
Sol. Let outer radius be $r_2$ cm and inner radius be $r_1$ cm. $\therefore r_2 - r_1 = 1$ ----- (i) Volume of metal used = $176$ cm$^3$ $\Rightarrow \frac{22}{7} \times 14 \times (r_2^2 - r_1^2) = 176$ $\Rightarrow r_2 + r_1=4$ ----- (ii) Solving (i) and (ii), we get $r_2 = \frac{5}{2}$ or $2.5$, $r_1 = \frac{3}{2}$ or $1.5$ Therefore, outer radius = $2.5$ cm and inner radius = $1.5$ cm
A room is in the form of a cylinder surmounted by a hemispherical dome. The base radius of the hemisphere is half of the height of the cylindrical part. If the room contains $\frac{1408}{21} \text{ m}^3$ of air, find the height of the cylindrical part. (Use $\pi = \frac{22}{7}$).
Show SolutionHide Solution↓
Let $r$ be the radius and $h$ be the height of cylinder. $h = 2r$. Volume $= \frac{2}{3}\pi r^3 + \pi r^2 h = \frac{1408}{21} \implies \frac{2}{3}\pi r^3 + \pi r^2(2r) = \frac{1408}{21} \implies \frac{8}{3} \times \frac{22}{7} \times r^3 = \frac{1408}{21} \implies r^3 = 8 \implies r = 2$ m and $h = 4$ m.
A student was asked to make a model shaped like a cylinder with two cones attached to its ends by using a thin aluminium sheet. The diameter of the model is $3$ cm and its total length is $12$ cm. If each cone has a height of $2$ cm, find the volume of air contained in the model.
Show SolutionHide Solution↓
Sol. Radius of each cone = Radius of cylinder = $\frac{3}{2}$ cm Height of each cone 'H' = $2$ cm Height of cylinder ‘h' = $12 – 4 = 8$ cm Volume of air = Volume of cylinder + Volume of $2$ cones $= \pi r^2 h + 2 \times \frac{1}{3} \pi r^2 H$ $= \pi r^2 (h + \frac{2}{3} H) = \frac{22}{7} \times (\frac{3}{2})^2 \times (8 + \frac{2}{3} \times 2)$ $= \frac{22}{7} \times \frac{9}{4} \times \frac{28}{3} = 66$ cm$^3$
A solid is in the shape of a right-circular cone surmounted on a hemisphere, the radius of each of them being $7$ cm and the height of the cone is equal to its diameter. Find the volume of the solid.
Show SolutionHide Solution↓
Radius of cone = radius of hemisphere = $7$ cm Height of cone = $14$ cm Volume of solid = Volume of hemisphere + volume of cone $= \frac{2}{3}\pi(7)^3 + \frac{1}{3}\pi(7)^2(14)$ $= \frac{1}{3} \times \frac{22}{7} \times 7 \times 7(14 + 14)$ $= \frac{154}{3} \times 28 = \frac{4312}{3} \text{ cm}^2 \text{ or } 1437.33 \text{ cm}^2$
A solid is in the shape of a right-circular cone surmounted on a hemisphere, the radius of each of them being $3.5$ cm and the total height of the solid is $9.5$ cm. Find the volume of the solid.
Show SolutionHide Solution↓
Radius of hemisphere = Radius of cone = $3.5$ cm = $\frac{7}{2}$ cm Height of cone = $9.5 - 3.5 = 6$ cm Volume of solid = volume of hemisphere + volume of cone $= \frac{2}{3} \times \frac{22}{7} \times (\frac{7}{2})^3 + \frac{1}{3} \times \frac{22}{7} \times (\frac{7}{2})^2 \times 6$ $= \frac{77}{6} \times 13 = \frac{1001}{6} = 166.8$ cm$^3$
From a solid cylinder of height $36$ cm and diameter $14$ cm, a conical cavity of radius $7$ cm and height $24$ cm is drilled out. Find the volume of the remaining solid.
Show SolutionHide Solution↓
Sol. Radius of cylinder = $7$ cm Volume of the remaining solid = $\frac{22}{7} \times (7)^2 \times 36 - \frac{1}{3} \times \frac{22}{7} \times (7)^2 \times 24$ = $5544 - 1232$ = $4312 \text{ cm}^3$ Therefore, volume of the remaining solid is $4312 \text{ cm}^3$.
A solid iron pole consists of a solid cylinder of height $200 \text{ cm}$ and base diameter $28 \text{ cm}$, which is surmounted by another cylinder of height $50 \text{ cm}$ and radius $7 \text{ cm}$. Find the mass of the pole, given that $1 \text{ cm}^3$ of iron has approximately $8 \text{ g}$ mass.
Show SolutionHide Solution↓
Radius of lower cylinder = $14 \text{ cm}$ Volume of pole = $\frac{22}{7} \times 14 \times 14 \times 200 + \frac{22}{7} \times 7 \times 7 \times 50$ $= 130900 \text{ cm}^3$ Mass of the pole= $8 \times 130900$ $=1047200 \text{ gm}$ or $1047.2 \text{ kg}$
A solid iron pole consists of a solid cylinder of height $200$ cm and base diameter $28$ cm, which is surmounted by another cylinder of height $50$ cm and radius $7$ cm. Find the mass of the pole, given that $1$ cm$^3$ of iron has approximately $8$ g mass.
Show SolutionHide Solution↓
Sol. Radius of lower cylinder = $14$ cm Volume of pole = $\frac{22}{7} \times 14 \times 14 \times 200 + \frac{22}{7} \times 7 \times 7 \times 50$ $= 130900$ cm$^3$ Mass of the pole= $8 \times 130900$ $=1047200$gm or $1047.2$ kg OR
A juice seller was serving his customers using glasses as shown in the figure. The inner diameter of the cylindrical glass was $5.6$ cm, but the bottom of the glass had a hemispherical raised portion which reduced the capacity of the glass. If the height of the glass was $10$ cm, find the apparent capacity and the actual capacity of the glass.
Show SolutionHide Solution↓
Radius$(r) = 2.8$cm Apparent capacity of glass $= \frac{22}{7} \times 2.8 \times 2.8 \times 10$ $= 246.4$ cm$^3$ Volume of hemispherical part $= \frac{2}{3} \times \frac{22}{7} \times 2.8 \times 2.8 \times 2.8$ $= 45.9$ cm$^3$ $\therefore$ Actual capacity of glass $= 246.4 - 45.9$ $= 200.5$ cm$^3$ or $200.5$ ml
A $16$ m deep well with diameter $3.5$ m is dug up and the earth from it is spread evenly to form a platform $27.5$ m $\times 7$ m. Find the height of the platform.
Show SolutionHide Solution↓
(a) Volume of the earth dug up = $\frac{22}{7} \times \frac{7}{4} \times \frac{7}{4} \times 16 = 154$ m$^3$. Area of platform = $27.5 \times 7 = 192.5$ m$^2$. Height of platform = $\frac{154}{192.5} = \frac{4}{5}$ m or $80$ cm

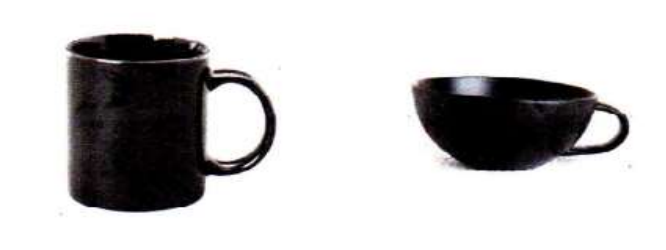

Case Study - 2 In a coffee shop, coffee is served in two types of cups. One is cylindrical in shape with diameter $7$ cm and height $14$ cm and the other is hemispherical with diameter $21$ cm. Based on the above, answer the following questions: (i) Find the area of the base of the cylindrical cup. (ii) (a) What is the capacity of the hemispherical cup? OR (ii) (b) Find the capacity of the cylindrical cup. (iii) What is the curved surface area of the cylindrical cup?
Show SolutionHide Solution↓
(i) Area of base of the cylindrical cup = $\frac{22}{7} \times \frac{7}{2} \times \frac{7}{2} = \frac{77}{2}$ or $38.5$ $\therefore$ Area of base of the cylindrical cup is $\frac{77}{2}$ or $38.5$ cm$^2$ (ii) (a) Capacity of hemispherical cup = $\frac{2}{3} \times \frac{22}{7} \times \frac{21}{2} \times \frac{21}{2} \times \frac{21}{2}$ $= \frac{4851}{2}$ or $2425.5$ $\therefore$ Capacity of hemispherical cup is $\frac{4851}{2}$ cm$^3$ or $2425.5$ cm$^3$ OR (ii) (b) Capacity of cylindrical cup = $\frac{22}{7} \times (7)^2 \times 14$ $= 539$ $\therefore$ Capacity of cylindrical cup is $539$ cm$^3$ (iii) External Curved surface area of cylindrical cup = $2 \times \frac{22}{7} \times \frac{7}{2} \times 14 = 308$ $\therefore$ External Curved surface area of cylindrical cup is $308$ cm$^2$

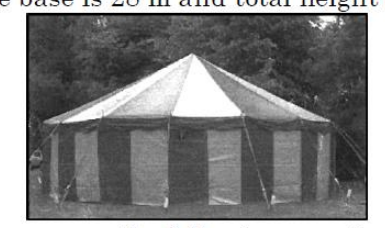

The word 'circus' has the same root as 'circle'. In a closed circular area, various entertainment acts including human skill and animal training are presented before the crowd. A circus tent is cylindrical upto a height of $8$ m and conical above it. The diameter of the base is $28$ m and total height of tent is $18.5$ m. Based on the above, answer the following questions : (i) Find slant height of the conical part. (ii) Determine the floor area of the tent. (iii) (a) Find area of the cloth used for making tent. OR (iii) (b) Find total volume of air inside an empty tent.
Show SolutionHide Solution↓
(i) Height of conical part $= 18.5 - 8 = 10.5$ m Radius of conical part $= 14$ m Slant height $= \sqrt{(10.5)^2 + (14)^2} = 17.5$ m (ii) Floor area $= \frac{22}{7} \times 14 \times 14 = 616$ m$^2$ (iii) (a) Area of cloth used $= 2 \times \frac{22}{7} \times 14 \times 8 + \frac{22}{7} \times 14 \times 17.5$ $= 1474$ m$^2$ OR (iii) (b) Volume of air inside the tent $= \frac{22}{7} \times 14 \times 14 \times 8 + \frac{1}{3} \times \frac{22}{7} \times 14 \times 14 \times 10.5$ $= 7084$ m$^3$

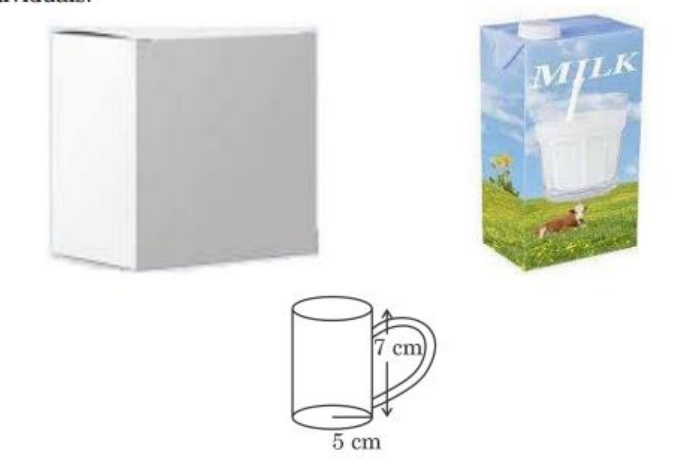

Case Study - 3 Tamper-proof tetra-packed milk guarantees both freshness and security. This milk ensures uncompromised quality, preserving the nutritional values within and making it a reliable choice for health-conscious individuals. $500$ mL milk is packed in a cuboidal container of dimensions $15$ cm x $8$ cm x $5$ cm. These milk packets are then packed in cuboidal cartons of dimensions $30$ cm x $32$ cm x $15$ cm. Based on the above given information, answer the following questions : (i) Find the volume of the cuboidal carton. (ii) (a) Find the total surface area of a milk packet. OR (b) How many milk packets can be filled in a carton ? (iii) How much milk can the cup (as shown in the figure) hold ?
Show SolutionHide Solution↓
(i) Volume of cuboidal carton $$\begin{aligned}& = 30\times32\times15 \\ & = 14400 \text{ cm}^3 \\ & \text{(ii)(a) Total surface area of milk packet } = 2(15\times8+8\times5+5\times15) \\ & = 470 \text{ cm}^2 \\ & \text{OR} \\ & \text{(ii) (b) Number of milk packets in carton } = \frac{30\times32\times15}{15\times8\times5} \\ & = 24 \\ & \text{(iii) Capacity of the cup } = \frac{22}{7} \times 5 \times 5 \times 7 \\ & = 550 \text{ cm}^3 \text{ or } 550 \text{ ml}\end{aligned}$$

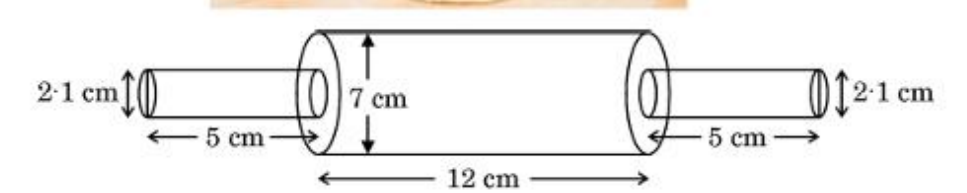

A skilled carpenter decided to craft a special rolling pin for the local baker. He carefully joined three cylindrical pieces of wood two small ones on the ends and one larger in the centre to create a perfect tool. The baker loved the rolling pin, as it rolled out the smoothest dough for breads and pastries. The length of the bigger cylindrical part is $12$ cm and diameter is $7$ cm and the length of each smaller cylindrical part is $5$ cm and diameter is $2.1$ cm. Based on the above information, answer the following questions : (i) Find the volume of the bigger cylindrical part. (ii) Find the curved surface area of the bigger cylindrical part. (iii) (a) Find the ratio of the volume of the bigger cylindrical part to the total volume of the two smaller (identical) cylindrical parts. OR (b) Find the sum of the curved surface areas of the two identical smaller cylindrical parts.
Show SolutionHide Solution↓
(i) Volume of the bigger cylindrical part $= \pi r^2 h = \frac{22}{7} \times \frac{7}{2} \times \frac{7}{2} \times 12$ $= 462$ cm$^3$ (ii) The Curved Surface Area of bigger cylindrical part $= 2 \pi r h = 2 \times \frac{22}{7} \times \frac{7}{2} \times 12$ $= 264$ cm$^2$ (iii) (a) Total volume of the two smaller cylindrical parts $= 2 \times \pi r^2 h = 2 \times \frac{22}{7} \times \frac{2.1}{2} \times \frac{2.1}{2} \times 5$ $= 34.65$ cm$^3$ Required ratio $= \frac{462}{34.65} = \frac{3080}{231}$ $\therefore$ Required ratio is $3080 : 231$ OR (b) The Sum of Curved Surface Area of two smaller cylindrical parts $= 2 \times 2 \pi r h = 2 \times 2 \times \frac{22}{7} \times \frac{2.1}{2} \times 5$ $= 66$ cm$^2$
To make the teaching-learning process easier, creative and innovative, a teacher brings clay in the classroom to teach the topic of mensuration. She forms a cylinder of radius $2.1$ cm and height $5$ cm with the clay and put a hemisphere of same radius on its top in such a way that the base of hemisphere covers the top of cylinder. Using the above information, and $\pi = \frac{22}{7}$, find : (a) The volume of cylinder so formed. (b) The volume of hemispherical part. (c) (i) The surface area of the complete solid. OR (c) (ii) The surface area of the cylindrical part, if hemisphere is not put on it.
Show SolutionHide Solution↓
(a) Volume of cylinder = $\frac{22}{7} \times \frac{21}{10} \times \frac{21}{10} \times 5 = 69.3$ cm$^3$ (b) Volume of hemispherical part = $\frac{2}{3} \times \frac{22}{7} \times \frac{21}{10} \times \frac{21}{10} \times \frac{21}{10} = 19.404$ cm$^3$ (c) (i) Surface area of the complete solid = $2 \times \frac{22}{7} \times \frac{21}{10} \times 5 + 3 \times \frac{22}{7} \times \frac{21}{10} \times \frac{21}{10} = 107.58$ cm$^2$ OR (c) (ii) Required surface area = $2 \times \frac{22}{7} \times \frac{21}{10} \times 5 + 2 \times \frac{22}{7} \times \frac{21}{10} \times \frac{21}{10} = 93.72$ cm$^2$
A solid wooden toy is in the shape of a right circular cone mounted on a hemisphere of same radius. If the radius of the hemisphere is $4.2$ cm and the total height of the toy is $10.2$ cm, find the volume of the wooden toy. Also, find the total surface area of the toy.
Show SolutionHide Solution↓
Height of conical part $= 10.2 - 4.2 = 6$ cm Volume of toy = Volume of conical part + Volume of hemispherical part $= (\frac{1}{3} \times \frac{22}{7} \times (4.2)^2 \times 6) + (\frac{2}{3} \times \frac{22}{7} \times (4.2)^3)$ $= 266.112$ Hence, Volume of toy is $266.112$ cm$^3$ Slant height of conical part $= \sqrt{(4.2)^2 + (6)^2} \approx 7.32$ cm TSA of the toy = CSA of hemispherical part + CSA of conical part $= (2 \times \frac{22}{7} \times (4.2)^2) + (\frac{22}{7} \times 4.2 \times 7.32)$ $= 207.504$ Hence, TSA of toy is $207.504$ cm$^2$
The largest possible hemisphere is drilled out from a wooden cubical block of side $21$ cm such that the base of the hemisphere is on one of the faces of the cube. Find : (i) the volume of wood left in the block, (ii) the total surface area of the remaining solid.
Show SolutionHide Solution↓
Diameter of hemisphere $=$ side of the cube $= 21$ cm $\therefore$ radius of hemisphere $= \frac{21}{2}$ cm (i) Volume of the wood left $=$ volume of cube $-$ volume of hemisphere $= 21^3 - \frac{2}{3} \times \frac{22}{7} \times (\frac{21}{2})^3$ $= 6835.5$ cm$^3$ (ii) Total surface area of remaining solid $=$ TSA of cube $-$ base area of hemisphere $+$ CSA of hemisphere $= 6 \times 21^2 - \frac{22}{7} \times (\frac{21}{2})^2 + 2 \times \frac{22}{7} \times (\frac{21}{2})^2$ $= 2992.5$ cm$^2$
A vessel is in the form of a hollow hemisphere mounted by a hollow cylinder. The diameter of the hemisphere is $14$ cm and the total height of the vessel is $13$ cm. Find the inner surface area and the volume of the vessel.
Show SolutionHide Solution↓
Radius = $7$ cm Height of cylindrical portion = $13 - 7 = 6$ cm Inner surface area of the vessel = $2\pi r^2 + 2\pi rh = 2 \times \frac{22}{7} \times 7 \times 7 + 2 \times \frac{22}{7} \times 7 \times 6 = 572 \text{ cm}^2$ Volume of the vessel $= \frac{2}{3} \pi r^3 + \pi r^2h = \frac{2}{3} \times \frac{22}{7} \times 7 \times 7 \times 7 + \frac{22}{7} \times 7 \times 7 \times 6 = \frac{4928}{3}$ or $1642.67 \text{ cm}^3$ approx. Therefore, inner surface area and volume of the vessel is $572 \text{ cm}^2$ and $1642.67 \text{ cm}^3$ respectively.

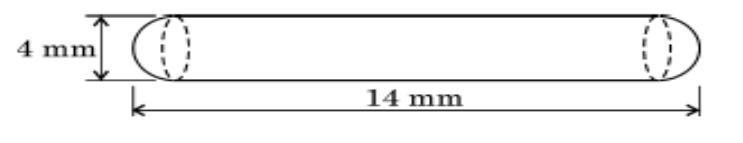

A medicine capsule is in the shape of a cylinder with two hemispheres stuck to each of its ends. The length of the entire capsule is $14 \text{ mm}$ and the diameter of the capsule is $4 \text{ mm}$, find its surface area. Also, find its volume.
Show SolutionHide Solution↓
Radius of hemisphere= radius of cylinder = $2 \text{ mm}$ Length of cylindrical part = $14 - 4 = 10 \text{ mm}$. Surface area of the capsule = CSA of cylinder + $2$(CSA of hemisphere) $= 2\pi r h + 2(2\pi r^2) = 2 \times \frac{22}{7} \times 2 \times 10 + 2 \times 2 \times \frac{22}{7} \times 2 \times 2$ $= 176 \text{ mm}^2$ Volume of the capsule = volume of cylinder + $2$(volume of hemisphere) $= \pi r^2 h + 2(\frac{2}{3}\pi r^3) = \frac{22}{7} \times 2 \times 2 \times 10 + 2 \times \frac{2}{3} \times \frac{22}{7} \times 2 \times 2 \times 2$ $= \frac{3344}{21} \text{ mm}^3$ or $159.24 \text{ mm}^3$
From a solid cylinder of height $2.4$ cm and radius $0.7$ cm, a conical cavity of the same height and same radius is hollowed out. Find the volume and total surface area of the remaining solid.
Show SolutionHide Solution↓
Volume of the remaining solid = Volume of cylinder - volume of cone $= \pi \times (0.7)^2 \times 2.4 - \frac{1}{3} \times \pi \times (0.7)^2 \times 2.4$ $= 2.464 \text{ cm}^3$ Slant height of cone = $\sqrt{(0.7)^2 + (2.4)^2} = 2.5$ cm Total Surface area = CSA of cylinder + CSA of cone + Area of base $= 2 \times \frac{22}{7} \times 0.7 \times 2.4 + \frac{22}{7} \times 0.7 \times 2.5 + \frac{22}{7} \times (0.7)^2$ $= 17.6 \text{ cm}^2$
A spherical glass vessel has a cylindrical neck $8$ cm long, $2$ cm in diameter; the diameter of the spherical part is $8.5$ cm. Find the amount of water it can hold, when it is full up to the top. Also, find its external curved surface area. [Use $\pi = 3.14$]
Show SolutionHide Solution↓
Radius of cylindrical neck = $1$ cm Radius of spherical part = $\frac{8.5}{2}$ or $\frac{85}{20}$ cm Amount of water hold by vessel = Volume of spherical part + Volume of cylindrical part $= \frac{4}{3} \times 3.14 \times (\frac{85}{20})^3 + 3.14 \times (1)^2 \times 8$ $= 346.51$ cm$^3$ approx. External CSA = CSA of spherical part + CSA of cylindrical part $= 4 \times 3.14 \times (\frac{85}{20})^2 + 2 \times 3.14 \times 1 \times 8$ $= 277.11$ cm$^2$ approx.

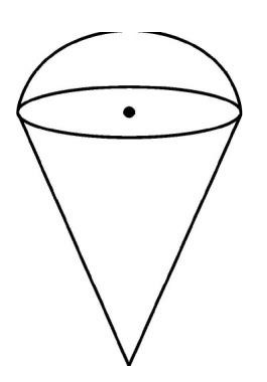

A solid toy is in the form of a hemisphere surmounted by a right circular cone. The height of the cone is $2$ cm and the diameter of the base is $4$ cm. Determine the volume of the toy. Also, find the surface area of the toy. (Take $\pi = 3\cdot14$)
Show SolutionHide Solution↓
Sol. Height of the cone $(h) = 2$ cm Radius of the hemisphere $=$ radius of the base of the cone $= r = 2$ cm Volume of the toy $$\begin{aligned}& = \frac{1}{3} \times 3.14 \times (2)^2 \times 2 + \frac{2}{3} \times 3.14 \times (2)^3 \\ & = 25.12 \text{ cm}^3\end{aligned}$$ Slant height of the cone $(l) = \sqrt{2^2 + 2^2} = 2\sqrt{2}$ cm Surface area of the toy $$\begin{aligned}& = 3.14 \times 2 \times 2\sqrt{2} + 2 \times 3.14 \times (2)^2 \\ & = 12.56 (2 + \sqrt{2}) \text{ cm}^2\end{aligned}$$
A bat manufacturing company made a huge bat for charity and got it signed by world cup winning team. The dimensions of the bat which is in the form of a cuboid with a cylindrical handle at the top are as follows : length = $2$ m, width = $0.5$ m, thickness = $0.1$ m, diameter of cylindrical part = $0.1$ m, height of cylindrical part = $0.7$ m. Find the volume of wood used in the bat. Also, find the total surface area of the wooden bat.
Show SolutionHide Solution↓
Radius of cylindrical part = $\frac{0.1}{2}$ m or $\frac{1}{20}$ m. Volume of wood = Volume of cuboid + volume of cylinder = $2 \times 0.5 \times 0.1 + \frac{22}{7} \times \frac{0.1}{2} \times \frac{0.1}{2} \times 0.7 = \frac{211}{2000}$ or $0.1055$ m$^3$. Total surface area of bat = TSA of cuboid + CSA of cylinder = $2(2 \times 0.5 + 0.5 \times 0.1 + 0.1 \times 2) + 2 \times \frac{22}{7} \times \frac{0.1}{2} \times 0.7 = \frac{5}{2} + \frac{11}{50} = \frac{68}{25}$ or $2.72$ m$^2$.
From a solid cylinder of height 24 cm and radius 5 cm, two cones of height 12 cm and radius 5 cm are hollowed out. Find the volume and surface area of the remaining solid.
Show SolutionHide Solution↓
Volume of remaining solid = Volume of cylinder - Volume of two cones $= \frac{22}{7} \times 5 \times 5 \times 24 - 2 \times \frac{1}{3} \times \frac{22}{7} \times 5 \times 5 \times 12 = \frac{8800}{7}$ or 1257.14 cm$^3$ approx. $l = \sqrt{(12)^2 + (5)^2} = 13$ cm Surface Area of remaining solid = Curved Surface Area of cylinder + Curved Surface Area of two cones $= 2 \times \frac{22}{7} \times 5 \times 24 + 2 \times \frac{22}{7} \times 5 \times 13 = \frac{8140}{7}$ or 1162.85 cm$^2$ approx.
From one face of a solid cube of side 14 cm, the largest possible cone is carved out. Find the volume and surface area of the remaining solid. (Use $\pi = \frac{22}{7}, \sqrt{5} = 2.2$)
Show SolutionHide Solution↓
Diameter of cone = 14 cm, Radius = 7 cm, Height of cone = 14 cm ($\frac{1}{2} + \frac{1}{2}$ marks). Slant height $l = \sqrt{14^2 + 7^2} = 7\sqrt{5} = 15.4$ cm (1 mark). Volume of remaining solid = Volume of cube - Volume of cone = $(14)^3 - \frac{1}{3} \times \frac{22}{7} \times (7)^2 \times 14 = \frac{6076}{3}$ cm$^3$ (1 + $\frac{1}{2}$ marks). Surface area of remaining solid = Surface area of cube - Area of circle + Curved surface area of cone = $6 \times 14 \times 14 - \frac{22}{7} \times 7 \times 7 + \frac{22}{7} \times 7 \times 15.4 = 1360.8$ cm$^2$ (1 + $\frac{1}{2}$ marks).

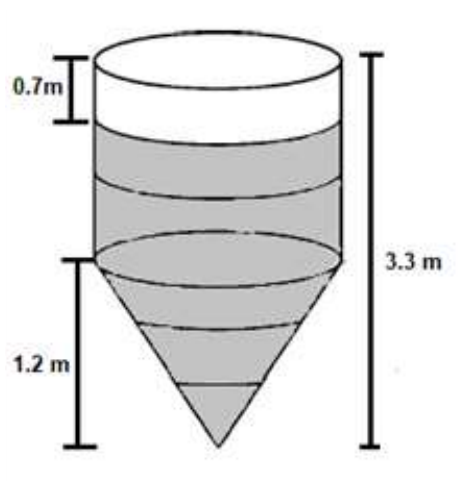

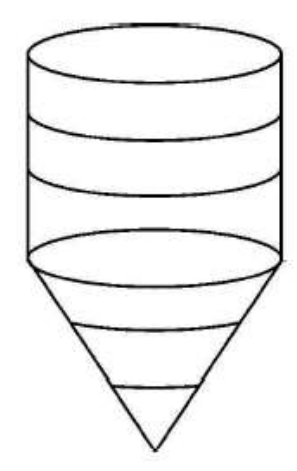

Fermentation tanks are designed in the form of cylinder mounted on a cone as shown below : The total height of the tank is $3.3$ m and height of conical part is $1.2$ m. The diameter of the cylindrical as well as conical part is $1$ m. Find the capacity of the tank. If the level of liquid in the tank is $0.7$ m from the top, find the surface area of the tank in contact with liquid.
Show SolutionHide Solution↓
Diameter $= 1$ m, $r = 0.5$ m. Height of Cylinder $(H) = 3.3 - 1.2 = 2.1$ m. Capacity of the tank = Volume of cylinder + Volume of cone $= \frac{22}{7} \times (0.5)^2 \times 2.1 + \frac{1}{3} \times \frac{22}{7} \times (0.5)^2 \times 1.2 = 1.96$ m$^3$. Slant height $(l) = \sqrt{(1.2)^2 + (0.5)^2} = 1.3$ m. Height of cylindrical part in contact with liquid $= 2.1 - 0.7 = 1.4$ m. Surface area of tank in contact with liquid = Curved Surface Area of Cylindrical part in contact with liquid + Curved surface Area of cone $= 2 \times \frac{22}{7} \times 0.5 \times 1.4 + \frac{22}{7} \times 0.5 \times 1.3 = 6.44$ m$^2$ (approx.)
On the top face of the wooden cube of side $7$ cm, hemispherical depressions of radius $0.35$ cm are to be formed by taking out the wood. The maximum number of depressions that can be formed is :
A vessel is in the form of an inverted cone. Its height is $8 \operatorname{cm}$ and the radius of its top, which is open, is $5 \operatorname{cm}$. It is filled with water up to the brim. When lead shots, each of which is a sphere of radius $0.5 \operatorname{cm}$, are dropped into the vessel, one-fourth of the water flows out. Find the number of lead shots dropped in the vessel.
Show SolutionHide Solution↓
Sol. Radius of cone $= 5 \operatorname{cm}$, height of cone $= 8 \operatorname{cm}$ Volume of water in the cone $= \frac{1}{3} \pi \times (5)^2 \times 8$ $= \frac{200\pi}{3} \operatorname{cm}^3$ Volume of water flows out $= \frac{1}{4}$ (Volume of water in the cone) $= \frac{1}{4} \times \frac{200\pi}{3} = \frac{50\pi}{3} \operatorname{cm}^3$ Radius of sphere (lead shot) $= 0.5 = \frac{1}{2} \operatorname{cm}$ Volume of one lead shot $= \frac{4}{3} \pi \times (\frac{1}{2})^3$ $= \frac{\pi}{6} \operatorname{cm}^3$ Number of lead shots $= \frac{\frac{50\pi}{3}}{\frac{\pi}{6}} = 100$
A vessel is in the form of an inverted cone. Its height is $8$ cm and the radius of its top, which is open, is $5$ cm. It is filled with water up to the brim. When lead shots, each of which is a sphere of radius $0.5$ cm, are dropped into the vessel, one-fourth of the water flows out. Find the number of lead shots dropped in the vessel.
Show SolutionHide Solution↓
Radius of cone = $5$ cm, height of cone = $8$ cm Volume of water in the cone = $$\begin{aligned}& \frac{1}{3}\pi\times (5)^2 \times 8 \\ & = \frac{200\pi}{3}\end{aligned}$$ cm$^3$ Volume of water flows out = $\frac{1}{4}$ (Volume of water in the cone) = $\frac{1}{4} \times \frac{200\pi}{3} = \frac{50\pi}{3}$ cm$^3$ Radius of sphere (lead shot) = $0.5 = \frac{1}{2}$ cm Volume of one lead shot = $$\begin{aligned}& \frac{4}{3}\pi\times \left(\frac{1}{2}\right)^3 \\ & = \frac{4}{3}\pi\times \frac{1}{8} = \frac{\pi}{6}\end{aligned}$$ cm$^3$ Number of lead shots = $\frac{\frac{50\pi}{3}}{\frac{\pi}{6}} = \frac{50\pi}{3} \times \frac{6}{\pi} = 100$
From one of the faces of a solid wooden cube of side 14 cm, maximum number of hemispheres of diameter 1.4 cm are scooped out. Find the total number of hemispheres that can be scooped out. Also, find the total surface area of the remaining solid.
Show SolutionHide Solution↓
Total number of hemispheres $= \frac{14 \times 14}{1.4 \times 1.4} = 100$ Total Surface Area of remaining solid = Surface Area of Cube + Curved Surface Area of 100 hemispheres - Area of 100 circles $= 6 \times 14 \times 14 + 100 \times 2 \times \frac{22}{7} \times 0.7 \times 0.7 - 100 \times \frac{22}{7} \times 0.7 \times 0.7$ $= 1330$ $\therefore$ Total surface area of remaining solid is 1330 cm$^2$.
A cap is cylindrical in shape, surmounted by a conical top. If the volume of the cylindrical part is equal to that of the conical part, then the ratio of the height of the cylindrical part to the height of the conical part is :
If a cone of greatest possible volume is hollowed out from a solid wooden cylinder, then the ratio of the volume of remaining wood to the volume of cone hollowed out is
A solid toy is in the form of a hemisphere surmounted by a right circular cone. Ratio of the radius of the cone to its slant height is $3: 5$. If the volume of the toy is $240\pi$ cm$^3$, then find the total height of the toy.
Show SolutionHide Solution↓
Let the radius and the slant height of the cone be $3x$ cm and $5x$ cm respectively $\therefore$ height of the cone (h) $= \sqrt{(5x)^2 - (3x)^2} = 4x$ cm According to question, volume of toy $= 240\pi$ $\frac{2}{3}\pi(3x)^3 + \frac{1}{3}\pi(3x)^2(4x) = 240\pi$ Solving, we get $x = 2$ $\therefore$ Total height of toy $= [4(2) + 3(2)]$ cm $= 14$ cm
Determine the ratio of the volume of a cube to that of the sphere which will exactly fit inside the cube.
Show SolutionHide Solution↓
Let the side of the cube be '$x$' units $\therefore$ Radius of the sphere = $\frac{x}{2}$ units $$\begin{aligned}& \frac{\text{Volume of cube}}{\text{Volume of sphere}} = \frac{x^3}{\frac{4}{3}\pi \times (\frac{x}{2})^3} \\ & = \frac{6}{\pi} \\ & \therefore\end{aligned}$$ required ratio is $6 : \pi$
A carpenter is making a wooden toy (lattu) which is conical in shape and surmounted by a hemisphere. The ratio of the height of the hemisphere and the cone is $3 : 4$. If the radius of the cone and the hemisphere is $2.1$ cm, find the volume of wood required to make this toy. Also, find the area to be painted after making the toy.
Show SolutionHide Solution↓
Given r: h = $3:4$ Let $r = 3x, h = 4x$ $\therefore r = 3x = 2.1 \Rightarrow x = 0.7$ Hence $h = 2.8$ cm Volume of wood required to make the toy = Volume of cone + Volume of hemisphere $= \frac{1}{3} \times \frac{22}{7} \times (2.1)^2 \times 2.8 + \frac{2}{3} \times \frac{22}{7} \times (2.1)^3$ $= 32.34 \text{ cm}^3$ Slant height of cone = $\sqrt{(2.1)^2 + (2.8)^2} = 3.5$ cm Total Surface Area = CSA of cone + CSA of hemisphere $= \frac{22}{7} \times 2.1 \times 3.5 + 2 \times \frac{22}{7} \times (2.1)^2$ $= 50.82 \text{ cm}^2$

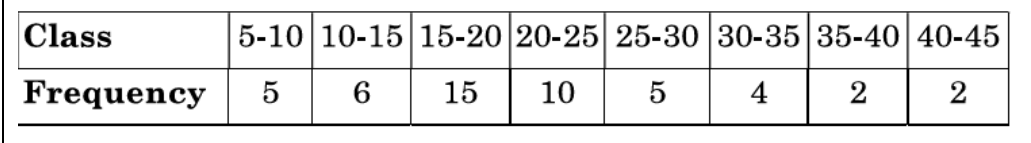

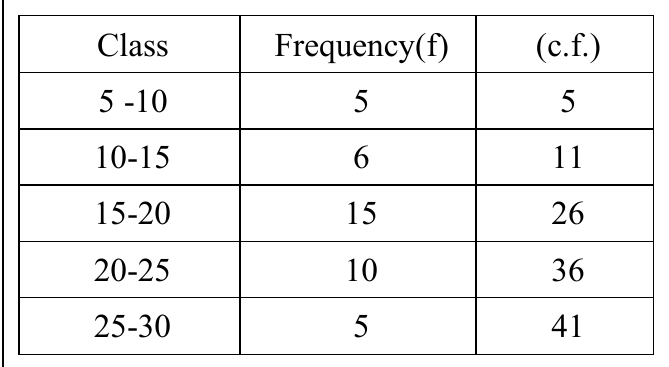

Calculate the mode and the median for the following distribution : Class $5-10, 10-15, 15-20, 20-25, 25-30, 30-35, 35-40, 40-45$; Frequency $5, 6, 15, 10, 5, 4, 2, 2$
Show SolutionHide Solution↓
Class Frequency(f) (c.f.) $5-10$ $5$ $5$ $10-15$ $6$ $11$ $15-20$ $15$ $26$ $20-25$ $10$ $36$ $25-30$ $5$ $41$ $30-35$ $4$ $45$ $35-40$ $2$ $47$ $40-45$ $2$ $49$ Median Class is $15-20$. Median = $15 + \frac{\frac{49}{2} - 11}{15} \times 5 = \frac{39}{2}$ or $19.5$. Modal Class is $15-20$. Mode = $15 + \frac{15-6}{30-6-10} \times 5 = \frac{255}{14}$ or $18.21$
