In the given figure, CD is the perpendicular bisector of AB . EF is perpendicular to CD . AE intersects CD at G .…

CBSE Class 10 Maths PYQ · Triangles · Similarity with Triangles · 3 Marks · March 2023 · Standard

Solve it yourself first — then press ↓ or tap Show Solution. Use ← → for previous / next question.

953 Marks · March 2023 · Standard

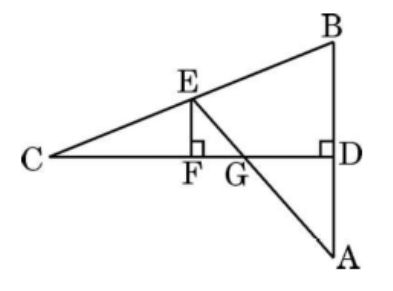

In the given figure, $CD$ is the perpendicular bisector of $AB$. $EF$ is perpendicular to $CD$. $AE$ intersects $CD$ at $G$. Prove that $\frac{CF}{CD} = \frac{FG}{DG}$.

Show SolutionHide Solution↓

$\triangle EFG \sim \triangle ADG$
$\Rightarrow \frac{EF}{AD} = \frac{FG}{DG}$
quad (i)
$\triangle EFC \sim \triangle BDC$
$\Rightarrow \frac{EF}{BD} = \frac{CF}{CD}$
$\Rightarrow \frac{EF}{AD} = \frac{CF}{CD}$
quad $\{BD = AD\}$
quad (ii)
Using (i) and (ii)
$\frac{FG}{DG} = \frac{CF}{CD}$
