The angle of elevation of the top of a tower 24 m high from the foot of another tower in the same plane is 60° . The…
CBSE Class 10 Maths PYQ · Applications of Trig · Double Triangle · 3 Marks · March 2023 · Standard
Solve it yourself first — then press ↓ or tap Show Solution. Use ←→ for previous / next question.
233 Marks · March 2023 · Standard
The angle of elevation of the top of a tower 24 m high from the foot of another tower in the same plane is $60^\circ$. The angle of elevation of the top of second tower from the foot of the first tower is $30^\circ$. Find the distance between two towers and the height of the other tower. Also, find the length of the wire attached to the tops of both the towers.
Show SolutionHide Solution↓

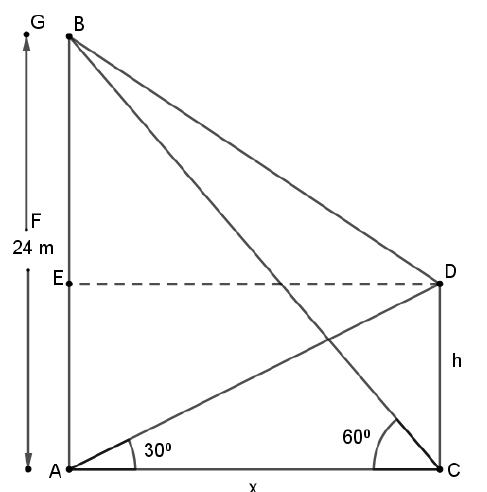

1 mark for correct figure Let $AB$ and $CD$ be the given towers. $\tan 30^\circ = \frac{h}{x} \Rightarrow x = h\sqrt{3}$ (i) $\tan 60^\circ = \sqrt{3} = \frac{24}{x} \Rightarrow x = \frac{24}{\sqrt{3}}$ or $8\sqrt{3}$ (ii) using (i) and (ii) $x=8\sqrt{3}$ and $h=8$ length of wire = $\sqrt{BE^2 + X^2} = \sqrt{256 + 192} = \sqrt{448}$ m = $8\sqrt{7}$ m
